SK30-SLA8-50 High Precision Shank Tool Holder for High Speed Machining
High hardness SK side lock end mill holder for milling machine tools ,SK END MILL HOLDER , apply to the holder of a DIN1835-B with a solid surface of the cutting tool, high speed and high precision machining .Mechanical spindle and cutting tools and other accessories.High Precision SK shank Tool Holder ,balanced G6.3 or G2.5 For choose.
SK END MILL HOLDER Product information
1. SK END MILL HOLDER Material: 20CrMnTi;
2. SK END MILL HOLDER Hardness: 58 + 2HRC;
3.7:24 taper accuracy < AT3;
4. Carburizing depth: > 0.8;
5. Surface roughness: <0.4;
6. All CNC tool holders are subjected to long-term cryogenic treatment to precipitate retained austenite into martensite and nano-carbide particles, which improves the hardness, toughness and durability of the tool holder and reduces the residual internal stress.
7. Extra-long time and thermal aging treatment can effectively remove the residual internal stress during grinding.

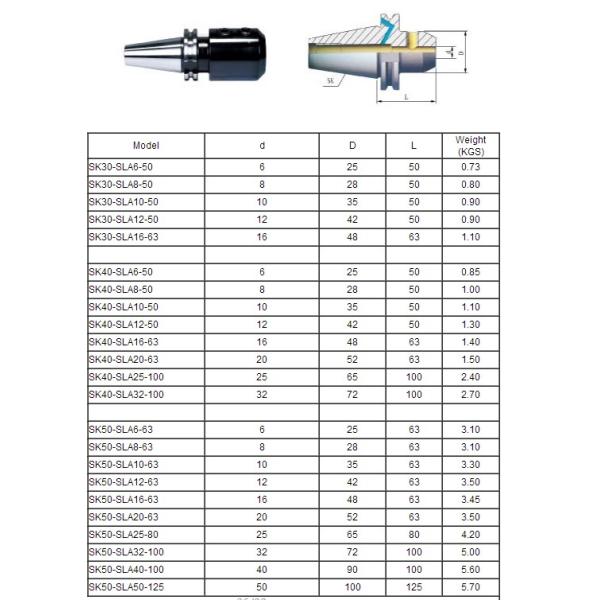

| Model | d | D | L | Weight(KGS) |
| SK30-SLA6-50 | 6 | 25 | 50 | 0.73 |
| SK30-SLA8-50 | 8 | 28 | 50 | 0.8 |
| SK30-SLA10-50 | 10 | 35 | 50 | 0.9 |
| SK30-SLA12-50 | 12 | 42 | 50 | 0.9 |
| SK30-SLA16-63 | 16 | 48 | 63 | 1.1 |
| | | | | |
| SK40-SLA6-50 | 6 | 25 | 50 | 0.85 |
| SK40-SLA8-50 | 8 | 28 | 50 | 1 |
| SK40-SLA10-50 | 10 | 35 | 50 | 1.1 |
| SK40-SLA12-50 | 12 | 42 | 50 | 1.3 |
| SK40-SLA16-63 | 16 | 48 | 63 | 1.4 |
| SK40-SLA20-63 | 20 | 52 | 63 | 1.5 |
| SK40-SLA25-100 | 25 | 65 | 100 | 2.4 |
| SK40-SLA32-100 | 32 | 72 | 100 | 2.7 |
| | | | | |
| SK50-SLA6-63 | 6 | 25 | 63 | 3.1 |
| SK50-SLA8-63 | 8 | 28 | 63 | 3.1 |
| SK50-SLA10-63 | 10 | 35 | 63 | 3.3 |
| SK50-SLA12-63 | 12 | 42 | 63 | 3.5 |
| SK50-SLA16-63 | 16 | 48 | 63 | 3.45 |
| SK50-SLA20-63 | 20 | 52 | 63 | 3.5 |
| SK50-SLA25-80 | 25 | 65 | 80 | 4.2 |
| SK50-SLA32-100 | 32 | 72 | 100 | 5 |
| SK50-SLA40-100 | 40 | 90 | 100 | 5.6 |
| SK50-SLA50-125 | 50 | 100 | 125 | 5.7 |
The SK Side Lock Tool Holder is a device used in machining operations to securely hold cutting tools in place. It is designed to be compatible with SK (Steilkegel) taper shank tools, which are commonly used in milling and drilling appliCATEEions.
The side lock tool holder features a cylindrical body with a tapered internal cavity that matches the SK taper of the tool. It also has a side lock mechanism that allows for quick and easy tool changes without the need for additional tools.
To use the SK side lock tool holder, the tapered shank of the tool is inserted into the cavity of the holder. The side lock mechanism is then engaged, locking the tool securely in place. This provides a rigid connection between the tool and the machine spindle, ensuring accurate and precise machining.
The SK side lock tool holder is known for its high clamping force and excellent tool stability, making it suitable for heavy-duty machining operations. It also offers good vibration damping properties, reducing tool chatter and improving surface finish.
Overall, the SK side lock tool holder is a reliable and efficient tool holding solution that is widely used in the metalworking industry.
